GOMOLD SPLINT : SHORT ARM

SHORT ARM

썸 플레이트

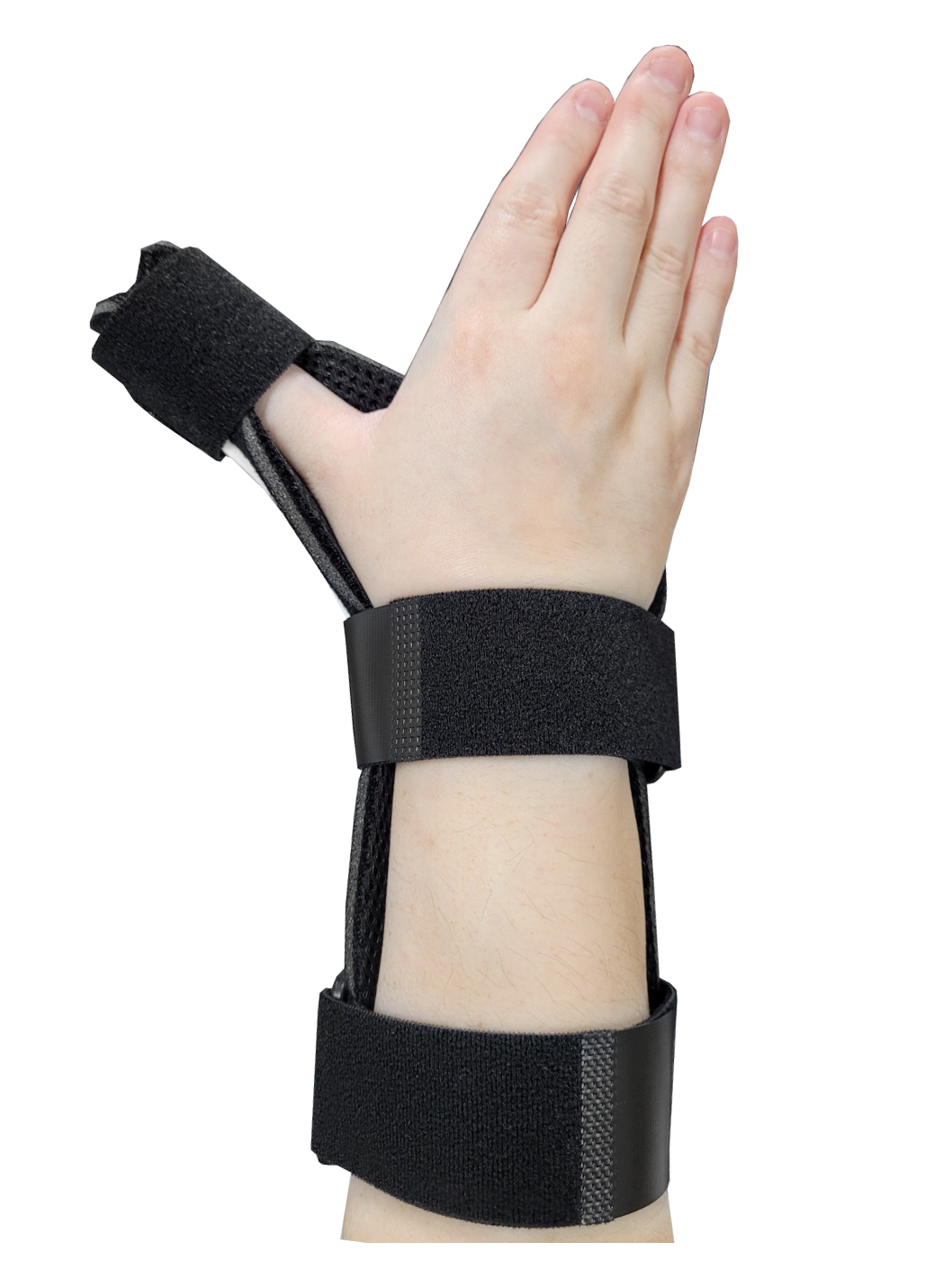

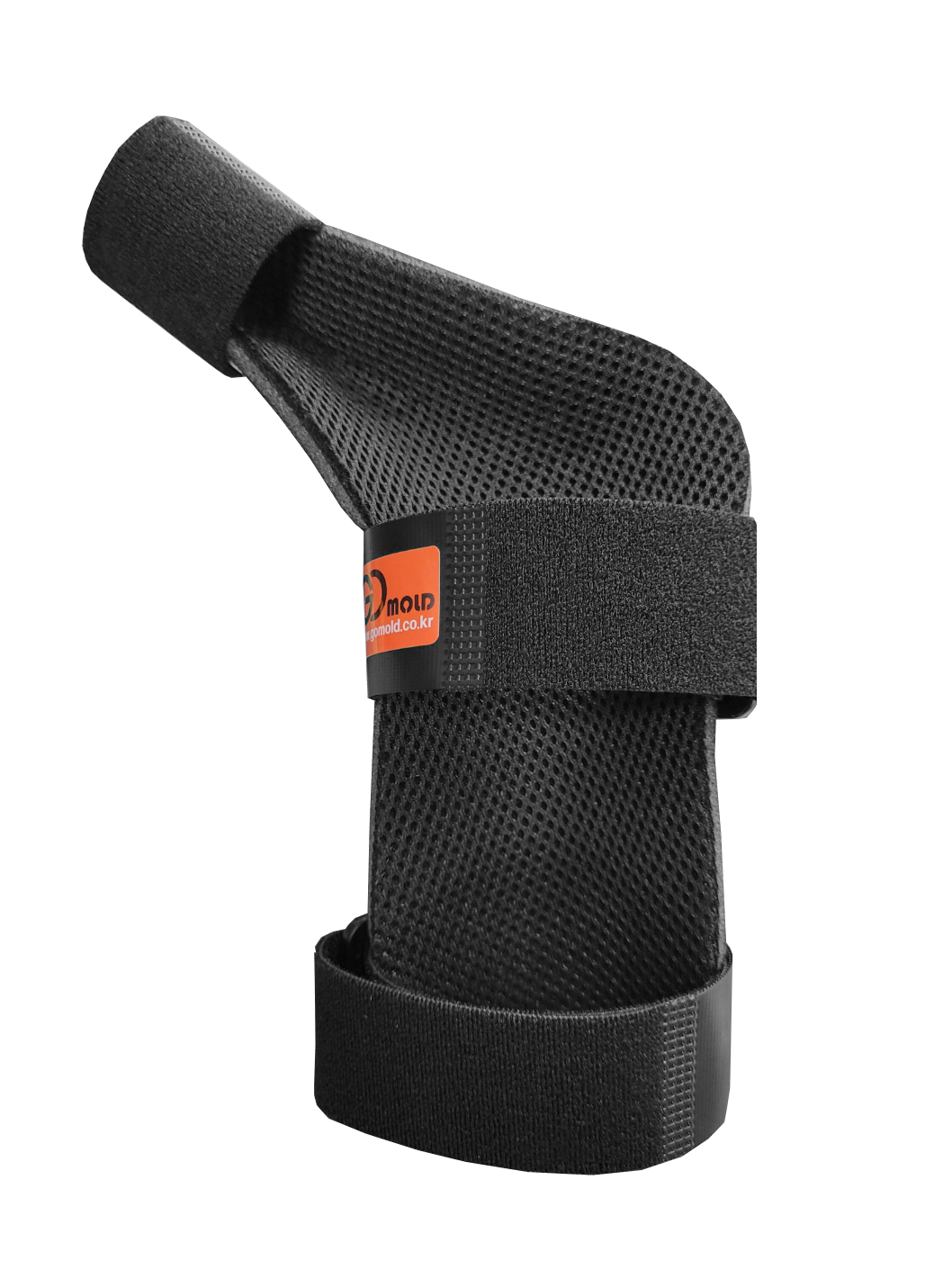

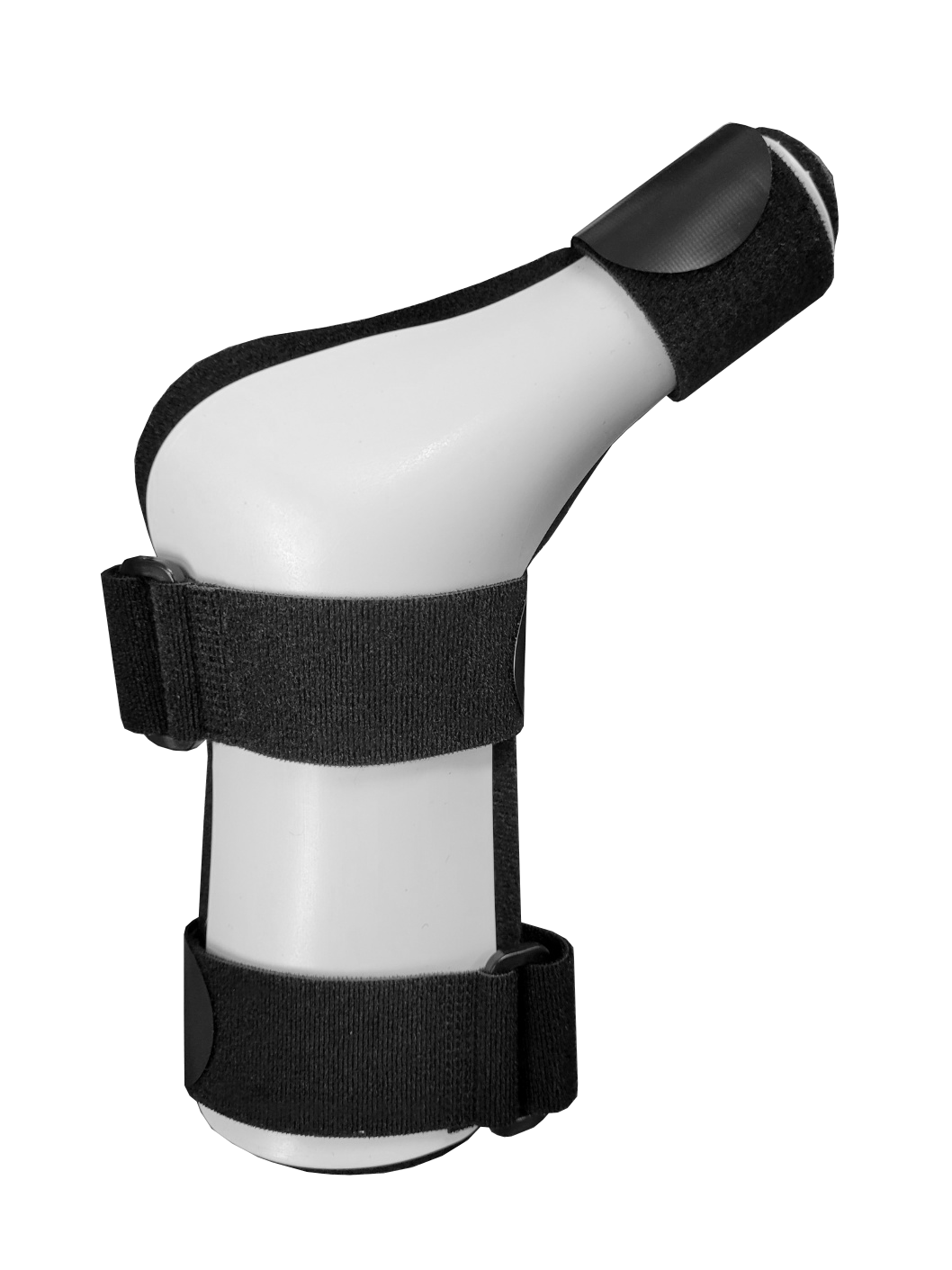

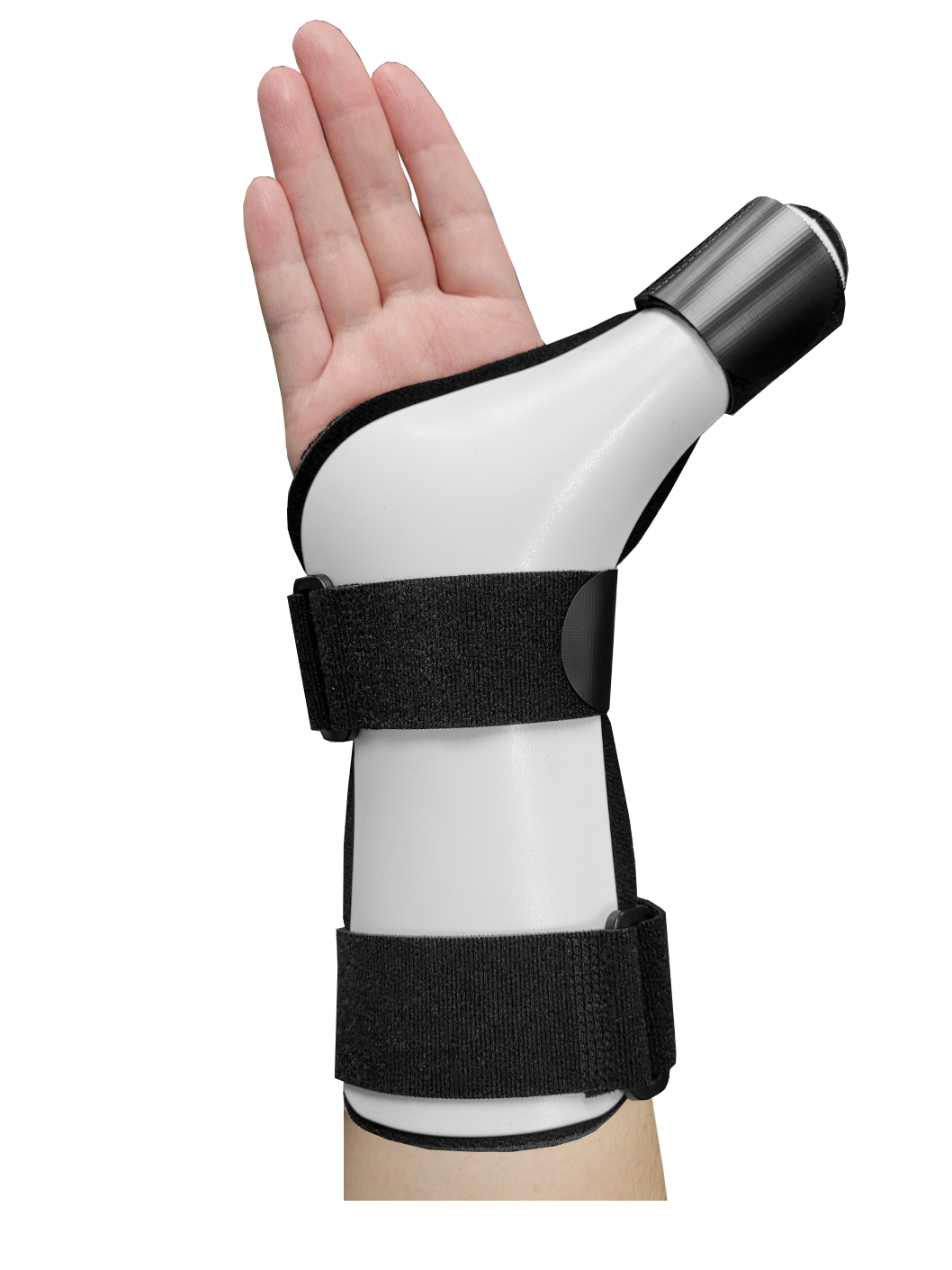

Thumb plate

K8-103-684

MGS-101

SIZE A B C D
Free 200mm 100mm 115mm 30mm



Purpose

엄지의 첫번째 손가락 관절을 고정시키는 목적의 제품.
A Product for the purpose of fixing the joint of the thumb first finger.

Indication

1. 엄지 첫번째 손가락 골절로 인한 수술 후 After surgery due to a fractured first finger of the thumb.
2. 엄지 인대 손상 Thumb ligament sprain.
3.엄지 폄 인대 파열 재활 기간 Rehabilitation period for torn ligament in thumb extension.











리스트 플레이트

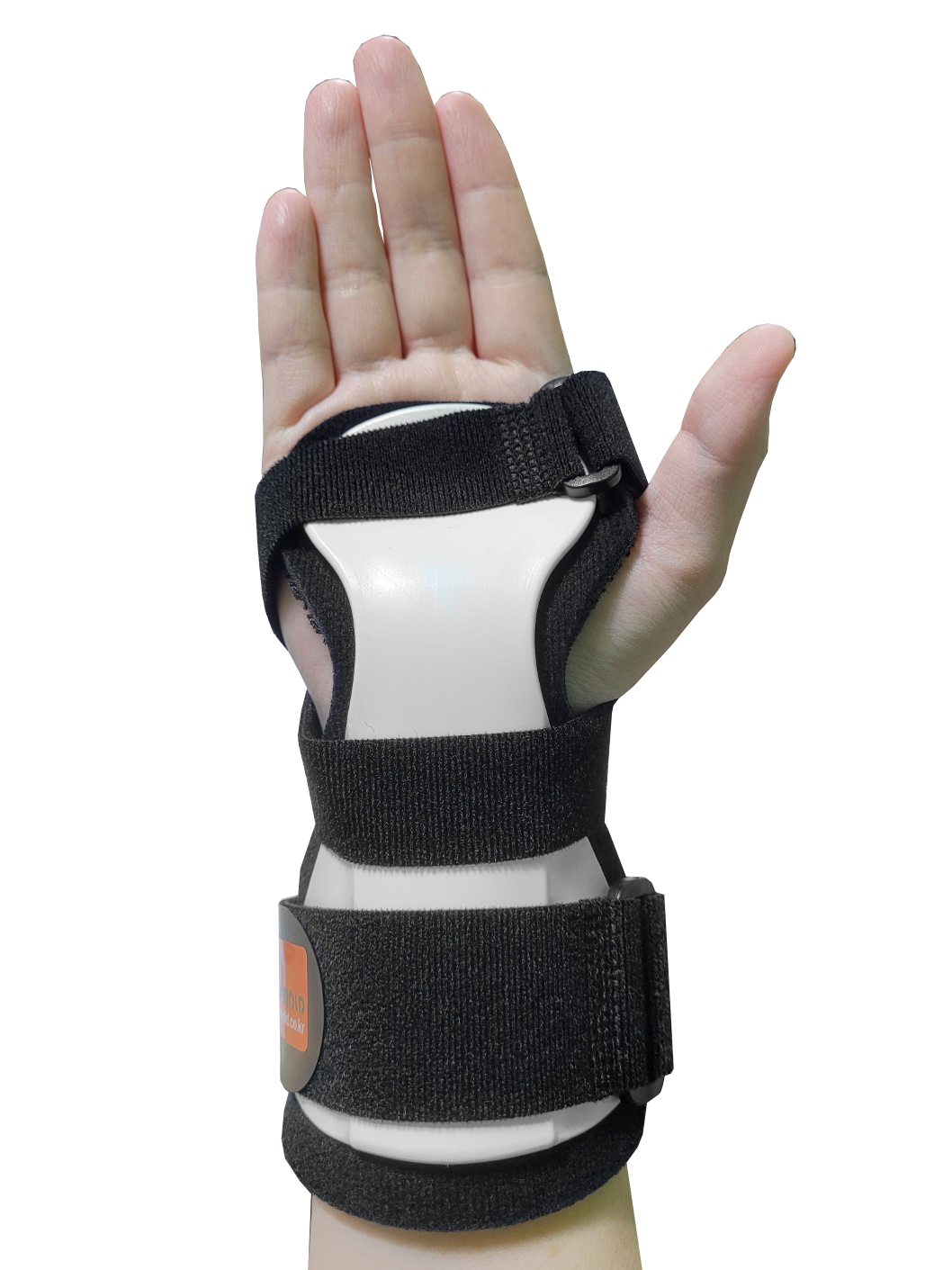

Wrist Plate

K8-103-684

MGS-102

SIZE A B C D E
Free 160mm 60mm 120mm 60mm 40mm



Purpose

손가락을 자유롭게 움직이면서 손목을 고정시키는 목적의 제품.
A product for the purpose of fixing the wrist while moving the finger freely.

Indication

1. 손목뼈 골절로 인한 수술 후 After surgery due to a fracture in the wrist.
2. 손목 인대 손상 Wrist ligament sprain.
3. 손목 신경 저림, 혹은 통증에 대한 안정을 위해 For stabilizing against numbness or pain in the wrist.
4. 손목 인대 파열 재활 기간 Rehabilitation period of Wrist ligament rupture.











얼라 거터

Ulnar Gutter

K8-103-684

MGS-103Rt

MGS-103Lt

SIZE A B C D E F
Free/Right 255mm 130mm 60mm 90mm 100mm 100mm
Free/Left 255mm 130mm 60mm 90mm 100mm 100mm



Purpose

네번째, 다섯번째 손가락을 고정시키는 목적의 제품.
A Product for the purpose of fixing the fourth and fifth fingers.

Indication

1. 네번째, 혹은 다섯번째 손가락 골절로 인한 수술 후 After surgery for a fractured fourth or fifth finger.
2. 네번째, 다섯번째 중수골 미세 골절 The fourth and fifth metacarpal microfractures.
3. 네번째, 혹은 다섯번째 손가락의 인대 손상으로 인한 고정 치료 Fixed treatment due to ligament damage in the fourth or fifth finger.











콕업

Cock-Up

K8-103-684

MGS-110L-Rt

MGS-110L-Lt

MGS-110S-Rt

MGS-110S-Lt

SIZE A B C D E F
L/Right 100mm 255mm 105mm 110mm 115mm 130mm
L/Left 100mm 255mm 105mm 110mm 115mm 130mm
S/Right 85mm 195mm 95mm 100mm 105mm 110mm
S/Left 85mm 195mm 95mm 100mm 105mm 110mm



Purpose

손가락을 자유롭게 움직이면서 손목을 고정시키는 목적의 제품.
A product for the purpose of fixing the wrist while moving the finger freely.

Indication

1. 손목뼈 골절로 인한 수술 후 After surgery due to a fracture in the wrist.
2. 손목 인대 손상 Wrist ligament sprain.
3. 손목 신경 저림, 혹은 통증에 대한 안정을 위해 For stabilizing against numbness or pain in the wrist.
4. 손목 인대 파열 재활 기간 Rehabilitation period of Wrist ligament rupture.











단상지 플레이트

Short arm plate

K8-103-684

MGS-120Rt

MGS-120Lt

SIZE A B C D E
Free/Right 250mm 110mm 80mm 95mm 105mm
Free/Left 250mm 110mm 80mm 95mm 105mm



Purpose

엄지를 제외한 중수골과 손목을 고정시키는 목적의 제품.
A product for the purpose of fixing the wrist and metacarpals that excluding the thumb.

Indication

1. 중수골 골절로 인한 수술 후 After surgery due to a fracture in the metacarpal bone.(=boxer Fx)
2. 손목 인대 손상 Wrist ligament sprain.
3.손목 신경 저림, 혹은 통증에 대한 안정을 위해 For stabilizing against numbness or pain in the wrist.
4.손목 인대 파열 재활 기간 Rehabilitation period of Wrist ligament rupture.
